Metal Gutters & Downpipe
Kent Roofing Supplies offers a range of Rainwater (Gutters, Guttering, Downpipes, Fascia and Soffits). The products have a selections sizes and shapes such as Half round, Deep Flow, Ogee and square (box profile). Metal gutters are becoming more and more popular with all UK gutters becoming metal and coming away from plastic which does not last as long and is affected by the sun warping and losing colour.
Zinc, Copper, Aluminium and Cast iron gutters can provide an affordable option that provides a great finish, can keep within character for a heritage property and will last you a lifetime still looking great with age.
For a full list of options or if you would like to discuss your options due to different methods of installation please contact us with a list of requirements or anything you would like to discuss and get some advice on.
Brands
Hargreaves Foundry Drainage
Hargreaves Foundry Drainage is a specialist Cast Iron Rainwater, Soil and Drain systems manufacturer, and leading distributor of cast iron products to the construction industry in the UK and Ireland. Cast Iron is one of the best choices for Rainwater, Soil and Drain products due to it’s sustainability, longevity, durability and reliability. It is a cost effective product that will last the life of a building and beyond, and does not contribute to the growing environmental impact caused by the over use of plastic.
Guide to buying cast iron guttering
Comprehensive guide to paint finishes
A guide to pipe and gutter measurements
Benefits of cast iron
Installation guide
Premier Soil Installation guide
Catalogue Price List – Price list can be changed without notice so please ask if price list is up to date.
Premier Cast Iron Rainwater and Soil
Premier Rainwater – Ex Stock
Premier Rainwater is a range of traditional cast iron pipes, gutters and fittings available “off the shelf”. These are standard products which have stood the test of time. Properly fitted our Premier products will enhance the exterior appearance of any building. Premier Rainwater Ex Stock is available as Premier Grey Primed or Premier Extra (PX) Black gloss. Other colours in the RAL or BS ranges are available ex stock but lead times will vary. We also offer Premier Coastal, essential to meet the rigours of a marine environment and, as for colour options, lead times will need to be agreed with our sales team at the time of order.
Premier Rainwater – Made to Order
Made to Order products do what they say on the tin. They are available within our range but need to be cast or fabricated with timescales agreed in advance. They can be ordered in exactly the same way as ex stock products. They are available in all the same paint options as Premier Ex Stock.
Bespoke Products
What separates Hargreaves Foundry Drainage from other rainwater and soil manufacturers is our ability to make bespoke castings. Hargreaves is a working foundry with skilled pattern makers and moulders, specialist fabricators and painters and over a century of iron casting experience at our site in Halifax, Yorkshire.
We can make bespoke products to suit any building, ancient or modern, but these skills are most in demand by the conservation, heritage and restoration market. There is no need to resort to the various forms of plastic substitute on offer. Anything that has been cast in the past, for instance during the Victorian era, we can cast. If they could make it back then, we can make it now.
Premier LCC Soil
Hargreaves Premier LCC Soil is a traditional socket and spigot pipe system with fittings for above ground soil and waste. Most products are ex-stock but other items are available as made to order or bespoke.
Traditional LCC Soil (BS469) is coated in a bitumen paint.
| PLAIN HALF ROUND | BEADED HALF ROUND | ||||
| SIZES | PRIMED | BLACK | PRIMED | BLACK | |
| 100MM | HR4001 | XHR4001 | HB4001 | XHB4001 | |
| 115MM | HR4501 | XHR4501 | HB4501 | XHB4501 | |
| 125MM | HR5001 | XHR5001 | HB5010 | XHB5010 | |
| 150MM | HR6001 | XHR6001 | HB6010 | XHB6010 | |
| PLAIN DEEP HALF ROUND | DOUBLE SPIGOT BOX GUTTER | ||||
| PRIMED | BLACK | PRIMED | BLACK | ||
| 100MM X 75MM | DH4301 | XDH4301 | B4301 | XB4301 | |
| 125MM X 75MM | DH5301 | XDH5301 | – | – | |
| OG GUTTER | NOTTS OG GUTTER | ||||
| PRIMED | BLACK | PRIMED | BLACK | ||
| 100MM | OG4001 | XOG4001 | – | – | |
| 115MM | OG4501 | XOG5010 | NO4501 | XNO4501 | |
| 125MM | OG5001 | XOG5001 | – | – | |
| G46 MOULDED GUTTER | H16 MOULDED GUTTER | ||||
| PRIMED | BLACK | PRIMED | BLACK | ||
| 100MM X 75MM | G4301 | XG4301 | – | – | |
| 125MM X 75MM | G5401 | XG5401 | H165401 | XH165401 | |
| 150MM X 100MM | – | – | H166401 | XH166401 | |
Plain Half Round Gutter
Plain Deep Half Round Gutter
Beaded Half Round Gutter
OG Gutter
Notts OG Gutter
Double Spigot Box Gutter
H16 Moulded
G46 Moulded Gutter
Metal Solutions Zinc, Copper, Stainless Steel and Aluminium Gutters
Rainwater systems in light gauge metal such as GreenCoat, copper, brass, bronze, zinc, stainless steel or precoated aluminium, are becoming ever more popular as stand alone systems or to compliment a traditional metal roofing finish.
We offer a standard range of rainwater systems, including half round, square or ogee guttering, together with round or square down pipes.
A full range of accessories are available. Rainwater systems can be manufactured in all traditional metals – please contact us if you have any special requirements.

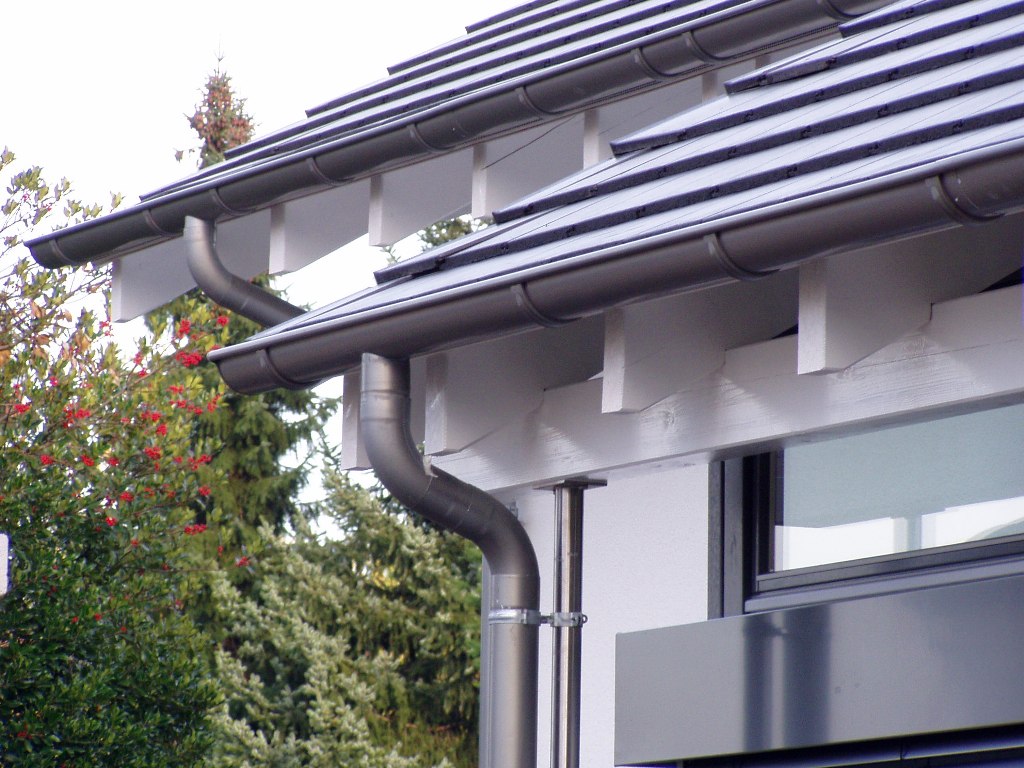

Zinc
Zinc gutters are made to order, the estimated lead time is 1-2 weeks but always check with us as this can change. The gutters are either soldered or bonded using a suitable sealant. Standard gutter is available in 2.4m lengths but can be made up to 4m. The range of gutters available include natural, pre-weathered (preaged, Neo) and black (Carbon, Noir).
- Zinc Half Round Gutters and Downpipes
Gutter sizes available: 110mm, 127mm and 153mm (standard length 2400mm, other lengths available up to 4000mm)
Zinc Half Round Gutter (Natural)
Zinc Half Round Gutter (Pre-Weathered/Pre-Aged)
Zinc Half Round Gutter (Black/Carbon)
Zinc Half Round Gutter External Corner
Zinc Half Round Gutter Internal Corner
Gutter Leaf Guard (760mm long) – Black/Grey
Zinc Half Round Gutter Stop End
Zinc Drop Outlet (running outlet) – 80mm or 100mm
Zinc Cup Outlet for Half Round Gutter – 80mm or 100mm
Zinc Half Round Fascia Bracket (Galvanised or Black painted)
Zinc Half Round Gutter Rafter Bracket (Galvanised or Black painted)
Rafter Side Support Bracket
Rafter Top Support Bracket
Rise and Fall Bracket
Pressed Fascia Bracket (For stand alone use or with Rafter Side / Top Support)
Zinc Expansion Joint
- Zinc Square Box Gutters and Downpipes
Gutter sizes available: 120mm, 150mm (standard length 2400mm, other lengths available up to 4000mm)
Zinc Square Gutter (Natural)
Zinc Square Gutter (Pre-aged)
Zinc Square Gutter (Carbon)
Zinc Square Gutter External Corner
Zinc Square Gutter Internal Corner
Zinc Square Gutter Left Stop End
Zinc Square Gutter Right Stop End
Zinc Cup Outlet for the Square or Ogee Gutter (natural finish only)
Zinc Box Outlet (natural finish only)
Zinc Square Gutter Fascia Bracket (Galvanised or Black Painted)
Zinc Square Gutter Rafter Bracket (Galvanised or Black Painted)
Zinc Expansion Joint
- Zinc Ogee Gutter
Gutter sizes available: 125mm, 150mm (standard length 2400mm, other lengths available up to 3000mm)
Zinc Ogee Gutter (Natural)
Zinc Ogee Gutter (Pre-aged)
Zinc Ogee Gutter (Carbon)
Zinc Ogee Gutter External Corner
Zinc Ogee Gutter Internal Corner
Zinc Ogee Gutter Left Stop End
Zinc Ogee Gutter Right Stop End
Zinc Cup Outlet for the Square or Ogee Gutter (natural finish only)
Zinc Box Outlet (natural finish only)
Zinc Ogee Gutter Fascia Bracket (Galvanised or Black Painted)
Zinc Ogee Gutter Rafter Bracket (Galvanised or Black Painted)
Zinc Square Gutter Right Stop End
Zinc cup outlet for the square or ogee gutter (natural finish only)
- Zinc Rainwater Pipe
Pipe sizes available: Standard lengths 2000mm, other lengths available up to 3000mm.
Zinc Rainwater Pipe – Round 80mm or 100mm (Natural)
Zinc Rainwater Pipe – Round 80mm or 100mm (Pre-aged)
Zinc Rainwater Pipe – Round 80mm or 100mm (Carbon)
Zinc Rainwater Pipe – Square, 76 x 76mm or 100 x 100mm (Natural)
Zinc Rainwater Pipe – Square, 76 x 76mm or 100 x 100mm (Pre-aged)
Zinc Rainwater Pipe – Square, 76 x 76mm or 100 x 100mm (Carbon)
Zinc Pipe Collar – Round
Zinc Pipe Bracket w/ 100mm fixing screw – Round (Galvanised or Black Painted)
Zinc Pipe Bracket w/ 100mm fixing screw – Square (Galvanised or Black Painted)
Zinc Pipe Bracket – Round Ring Type
Zinc Pipe Bracket – Square Ring Type
Zinc Pipe 72 deg Bend – Round
Zinc Pipe Water Diverter
Zinc Pipe 72 deg Bend – Square
Zinc Pipe Y-Branch – Round
Zinc Pipe Y-Branch – Square
Zinc Hopper for Round Pipe (300 x 200 x 200mm, other sizes/dims on request)
Zinc Hopper for Square Pipe (300 x 200 x 200mm, other sizes/dims on request)
Balloon Grating / Leaf Guard (Galvanised Steel)
Copper
Our copper guttering and rainwater systems are from 0.6mm Aurubis Standard copper. We can also fabricate from the full range of Aurubis Nordic finishes, as well as producing any bespoke items.
- Copper Half Round Gutter
Gutter sizes available: 110mm, 127mm, 153mm (standard lengths 2400mm, other lengths available up to 4000mm)
Copper Half Round Gutter
Gutter Leaf Guard (760mm long)
Copper Half Round Gutter External Corner
Copper Half Round Gutter Internal Corner
Copper Half Round Gutter Stop End
Copper Drop Outlet
Copper Cup Outlet for Half Round Gutter
Copper Half Round Gutter Fascia Bracket (25mm x 5mm section)
Copper Half Round Gutter Rafter Bracket (25mm x 5mm section)
Copper Expansion Joint (length 3000mm, width 260mm)
- Copper Square Gutter
Gutter sizes available: 120mm, 150mm (Standard lengths 2400mm, other lengths available up to 4000mm).
Copper Square Gutter
Copper Square Gutter External Corner
Copper Square Gutter Internal Corner
Copper Square Gutter Stop End
Copper Square Gutter Fascia Bracket
Copper Square Gutter Rafter Bracket
Copper Cup Outlet for Square or Ogee Gutter
Copper Box Outlet
Copper Expansion Joint
- Copper Ogee Gutter
Gutter sizes available: 125mm, 150mm (Standard lengths 2400mm, other lengths available up to 3000mm).
Copper Ogee Gutter
Copper Ogee Gutter External Corner
Copper Ogee Gutter Internal Corner
Copper Ogee Gutter Stop End
Copper Cup Outlet for Square or Ogee Gutter
Copper Box Outlet
Copper Ogee Gutter Fascia Bracket (25mm x 5mm section)
Copper Ogee Gutter Rafter Bracket (25mm x 5mm section)
- Copper Rainwater Pipe
Pipe sizes available: Standard lengths 2000mm, other lengths available up to 3000mm.
Copper Rainwater Pipe – Round (80mm and 100mm)
Copper Rainwater Pipe – Square (76mm x 76mm or 100mm x 100mm)
Copper Pipe Bracket – Round w/ 100mm fixing screw.
Copper Pipe Bracket – Square w/ 100mm fixing screw.
Copper Pipe Bracket – Round Ring Type (copper ‘T’ piece)
Copper Pipe Bracket – Square Ring Type (copper ‘T’ piece)
Copper Pipe 72 deg Bend – Round
Copper Pipe 72 deg Bend – Square
Copper Pipe Y-Branch – Round (angle of branch can be requested)
Copper Pipe Y-Branch – Square (angle of branch can be requested)
Copper Hopper for Round Pipe (300mm x 200mm x 200mm, other sizes/dims on request)
Copper Hopper for Square Pipe (300mm x 200mm x 200mm, other sizes/dims on request)
Copper Balloon Grating / Leaf Guard
Stainless Steel
Our Stainless Steel Rainwater System is manufactured from 0.5mm 316 grade Roofinox Classic. It can withstand wind and storm, is completely rust-free and is algae and mould-resistant.
Roofinox stainless steel is infinitely combinable with other building materials because of its brushed finish – both optically and technically. You can choose between the traditional half-round shape or the modern box shape.
The Roofinox Rainwater System is near to indestructible and practically maintenance-free. Roofinox stainless steel is sustainable and good for the environment. There is no traceable material erosion and it is non-reactive with water. It is produced from more than 85% recycled material, and the final product is 100% recyclable.
- Stainless Half Round Gutter
Gutter sizes available: 110mm, 127mm, 153mm (Standard lengths 2400mm, other lengths available up to 4000mm).
Stainless Half Round Gutter
Gutter Leaf Guard (760mm long)
Stainless Half Round Gutter External Corner
Stainless Half Round Gutter Internal Corner
Stainless Half Round Gutter Stop End
Stainless Drop Outlet (only available in 127mm gutter / 80mm rainwater pipe, 153mm gutter / 100mm rainwater pipe)
Stainless Cup Outlet for Half Round Gutter
Stainless Half Round Gutter Fascia Bracket (25mm x 3mm section)
Stainless Half Round Gutter Rafter Bracket (25mm x 3mm section)
Terned Stainless Steel Expansion Joint (length 3000mm, width 260mm)
- Stainless Square Gutter
Gutter sizes available: 120mm, 150mm (Standard lengths 2400mm, other lengths available up to 4000mm).
Stainless Square Gutter
Stainless Square Gutter External Corner
Stainless Square Gutter Internal Corner
Stainless Square Gutter Left Stop End
Stainless Square Gutter Right Stop End
Stainless Cup Outlet for Square Gutter
Stainless Square Outlet
Stainless Square Gutter Fascia Bracket (25mm x 3mm section)
Stainless Square Gutter Rafter Bracket (25mm x 3mm section)
Terned Stainless Steel Expansion Joint (length 3000mm, width 260mm)
- Stainless Rainwater Pipe
Pipe sizes available: Standard lengths 2000mm, other lengths available up to 3000mm.
Stainless Rainwater Pipe – Round (80mm and 100mm)
Stainless Rainwater Pipe – Square (76mm x 76mm or 100mm x 100mm)
Stainless Pipe Bracket – Round
Stainless Pipe Bracket – Square
Stainless Pipe 72 Deg Bend – Round
Stainless Pipe 72 Deg Bend – Square
Stainless Pipe Y-Branch – Round (angle of branch can be requested)
Stainless Pipe Y-Branch – Square (angle of branch can be requested)
Stainless Hopper for Round Pipe (300mm x 200mm x 200mm, other sizes/dims on request)
Stainless Hopper for Square Pipe (300mm x 200mm x 200mm, other sizes/dims on request)
GreenLine® Rainwater Goods
Durability
GreenLine® gutters & pipes are produced from the highest quality coated steel from SSAB, so they are more durable and more resistant to scratches and varied weather conditions. The multi-layer GreenCoat® RWS ensures excellent resistance to corrosion elements, which extends the life of the system. GreenLine® comes with a 30 year warranty.
Easy Installation
Simple and easy installation. No leaking connections with rivets or screws. GreenLine® is one of the easiest to install gutter systems on the market. Installation, repairs and maintenance can be carried out without any specialised equipment or tools.
Completeness and Compatibility
GreenLine® is 100% complete and fully compatible with Scandinavian gutter systems. When replacing any parts of the system, you can purchase GreenLine® products and connect them to an existing Scandinavian gutter system, already installed on the building.
Gutter and pipe colours: Mountain Grey (036), Metallic Dark Silver (044), Nordic Night Black (015).
Gutter sizes available: 2400mm.
Pipe sizes available: 90mm x 500mm, 90mm x 1000mm, 90mm x 2400mm.
GreenLine® Gutter Leaf Guard (760mm long)
GreenLine® Half Round Gutter
GreenLine® Half Round Gutter Fascia Bracket
GreenLine® Half Round Gutter Rafter Bracket
GreenLine® Half Round Gutter Joint
GreenLine® Half Round Gutter External Corner
GreenLine® Half Round Gutter Internal Corner
GreenLine® Half Round Gutter Stop End
GreenLine® Half Round Gutter Drop Outlet
GreenLine® Round Rainwater Pipe
GreenLine® Round Pipe Bracket
GreenLine® Round Pipe Shoe
GreenLine® Round Pipe 60° Bend
GreenLine® Round Pipe Y-Branch
GreenLine® Round Pipe Water Diverter
GreenLine® Round Pipe Hopper
Struga Anthracite Rainwater Goods
The Struga range of rainwater goods is manufactured from GreenCoat RWS and hence is a perfect match for a GreenCoat PLX BT standing seam roof.
Intelligent design of the downpipes give a watertight yet seamless look to the system. The male to female interlocking joints on downpipes are cleverly contained as a part of the downpipe giving a clean and seamless finish to junction. All elements of the Struga Metal Gutter System are produced using Swedish Steel material giving long lasting colour fastness and fade resistance.
Struga Metal Gutter System components, gutters, pipes and accessories, do not crack during forming and installation allowing it to be installed even in winter. Benefits of the Struga Metal Gutter System include: good resistance to corrosion, good mechanical properties, easy to install, long useful life and limited maintenance requirements.
- Struga Anthracite Half Round Gutter & Accessories
Gutter sizes available: 125mm x 2000mm, 125 x 3000mm.
Struga Anthracite Half Round Gutter
Struga Anthracite Half Round Gutter External Corner
Struga Anthracite Half Round Gutter Internal Corner
Struga Anthracite Half Round Gutter Stop End
Struga Anthracite Drop Outlet
Struga Anthracite Half Round Gutter Fascia Bracket
Struga Anthracite Half Round Gutter Rafter Bracket
Struga Anthracite Half Round Gutter Connector
- Struga Anthracite Rainwater Pipe & Accessories
Pipe sizes available: 90mm x 1000mm, 90mm x 2000mm.
Struga Anthracite Rainwater Pipe
Struga Anthracite Pipe Bracket
Struga Anthracite Pipe 70° Bend
Struga Anthracite Pipe Y-Branch
Struga Anthracite Pipe Shoe
Struga Anthracite Pipe Diverter
Struga Anthracite Hopper
Lindab Rainwater Goods
Lindab Rainline offers the highest quality when it comes to combining durability, flexibility and ease of installation. This system has been developed by professionals and over time it has grown to become the top choice of tradesmen and DIY enthusiasts alike, due to its hard-wearing properties which ensure decades of performance.
To provide long-term life, the steel is rustproofed by a 275g zinc coating. This galvanised coating is naturally self-healing; any scratch or cut is automatically sealed by zinc ions which migrate to re-coat the uncovered steel. Lindab Rainline is manufactured from up to 30% recycled material and is itself completely recyclable. The integrity of the system will last in excess of 70 years – so no need to worry about costly disposal problems or the likely impact on the environment.
